Vehicle Specifications

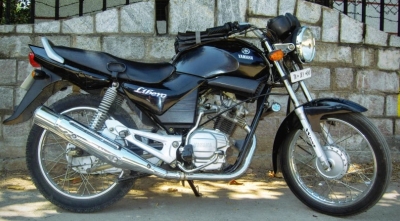

Yamaha LIBERO Specfications And Features
The Libero was also a victim of Yamaha"s that time"s Weird styling, the front headlight was absolute out of proportion element. The Libero could not do well also because of Yamaha "s that time"s poor service network.

Engine

SpecificationValue
Engine Displacement105.6 CC
Engine typeAir cooled, 4 stroke
Number Of Cylinders1
Valves Per Cylinder2
Max Power7.6 PS @7500 rpm
Max Torque7.8 Nm @6000 rpm
Bore x Stroke49.0 x 56.0 mm
Fuel TypePetrol
StarterKick

Transmission

SpecificationValue
Transmission TypeManual
Number Of Speed Gears4
Final Drive(Rear Tyre)Chain

WHEELS & TYRES

SpecificationValue
Front Tyre2.75 X 18″ 4 PR
Rear Tyre 3.00 X 18″ 6 PR

BRAKES

SpecificationValue
Front Brake130 mm Drum
Rear Brake130 mm Drum

SUSPENSION

SpecificationValue
Suspension Front Telescopic forks Suspension
Suspension RearSwing arm hydraulic shock absorber

Dimensions

SpecificationValue
Overall Length 2000 mm
Overall Width 730 mm
Overall Height 1050 mm
Wheelbase 1290 mm
Ground Clearance173 mm
Kerb Weight 119 kg
Fuel Capacity13.0 Litres
